2019 L-band cross-correlation analysis

This notebook contains the code for performing cross-correlation analysis for MeerKLASS 2019 L-band data x WiggleZ.

The 21cm map data is publically available at https://meerklass.org/data.html

The detailed description of each data analysis step can be found in https://meer21cm.readthedocs.io/en/latest/cookbook/2021_Lband_gama_cross.html

from meer21cm import PowerSpectrum
import matplotlib.pyplot as plt
import numpy as np
from meer21cm.util import pca_clean
from meer21cm.telescope import dish_beam_sigma
from meer21cm.util import center_to_edges
from meer21cm.plot import plot_map, plot_eigenspectrum
from meer21cm.inference import SamplerEmcee, extract_model_fitting_inputs
from meer21cm.transfer import TransferFunction
from meer21cm.grid import shot_noise_correction_from_gridding
from meer21cm.power import get_shot_noise_galaxy

file_dir = './'
pickle_file = file_dir+'MK_2019_maps.pkl'
gal_file = file_dir+'reg11data.dat'

ps = PowerSpectrum(
    pickle_file=pickle_file,
    #gal_file=gal_file,
    beam_model='gaussian',
    beam_type='isotropic',
    band='L',
    survey='meerklass_2019',
)
# read in map_file
ps.read_from_pickle()
# read in galaxy positions
galcat = np.genfromtxt(gal_file, skip_header=1)
ra_g,dec_g,z_g = galcat[:,0],galcat[:,1],galcat[:,2]
ps._ra_gal = ra_g
ps._dec_gal = dec_g
ps._z_gal = z_g
D_dish = 13.5 # Dish-diameter [metres]
sigma_ch = dish_beam_sigma(D_dish,ps.nu,)
ps.sigma_beam_ch = sigma_ch

filtering map los

# this is just for plotting the contour below
temp = PowerSpectrum(
    pickle_file=pickle_file,
    #gal_file=gal_file,
    beam_model='gaussian',
    beam_type='isotropic',
    band='L',
    survey='meerklass_2019',
)
temp.read_from_pickle()
temp.W_HI = np.ones_like(temp.W_HI)
temp.ra_range = np.array([153,172])
temp.dec_range = np.array([0.5,6.6])
temp.trim_map_to_range()

filtering map los

plt.rcParams.update({'font.size': 21})

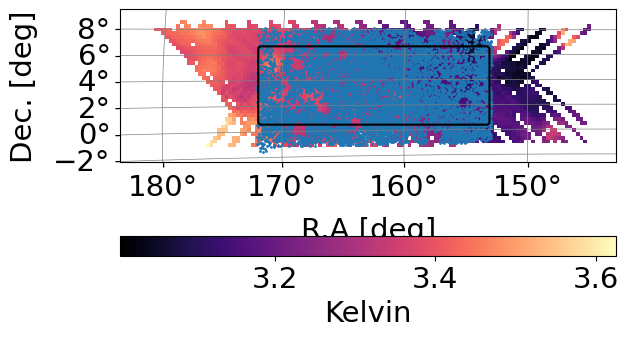

plot_map(ps.data,ps.wproj,W=ps.W_HI,cbar_label='Kelvin')
ax = plt.gca()
ax.scatter(
    ps.ra_gal,
    ps.dec_gal,
    transform=ax.get_transform('world'),
    s=1,
    alpha=1,
)
ax.contour(temp.W_HI[:,:,0].T,level=[0.5],colors='black')

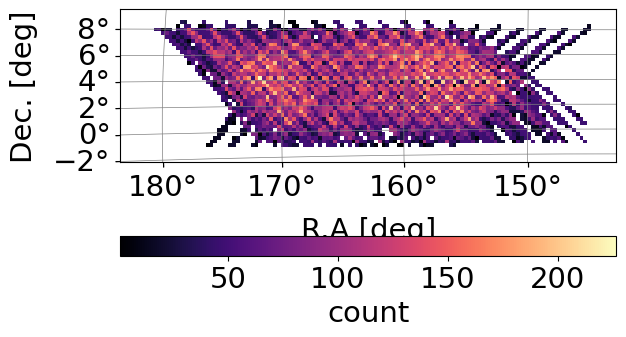

plot_map(ps.w_HI,ps.wproj,W=ps.W_HI,cbar_label='count')

/users/ztchen/.conda/envs/meer21cm/lib/python3.10/site-packages/astropy/visualization/wcsaxes/core.py:257: UserWarning: The following kwargs were not used by contour: 'level'
  cset = super().contour(*args, **kwargs)

ps.ra_range = np.array([153,172])
ps.dec_range = np.array([0.5,6.6])
ps.trim_map_to_range()
ps.trim_gal_to_range()

array([False, False, False, ..., False, False, False])

MKmap_orig = ps.data.copy()

N_fg = 10
MKmap_clean, A_mat = pca_clean(MKmap_orig,N_fg,weights=ps.w_HI,mean_center=True, return_A=True)

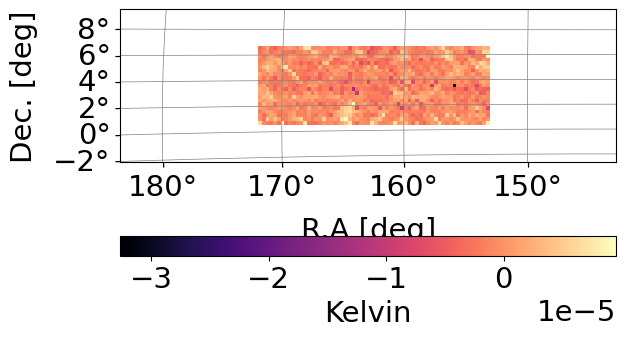

plot_map(MKmap_clean,ps.wproj,W=ps.W_HI,cbar_label='Kelvin')

nu_edges = center_to_edges(ps.nu)
cov_map,eignumb,eigenval,V = pca_clean(MKmap_orig,N_fg=1,weights=ps.W_HI,return_analysis=True,mean_center=True) # weights included in covariance calculation

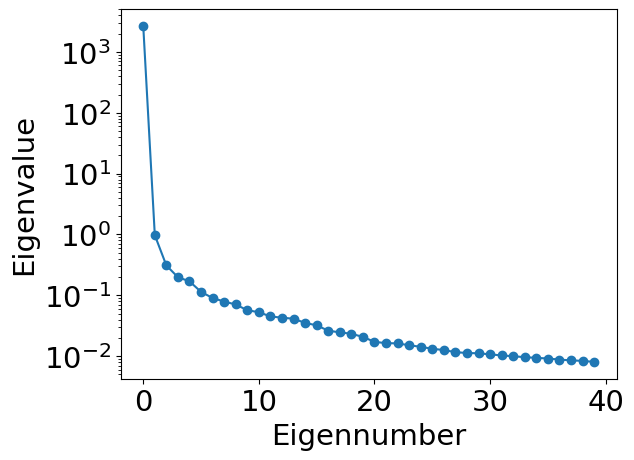

plot_eigenspectrum(np.array([eigenval]))
plt.figure()

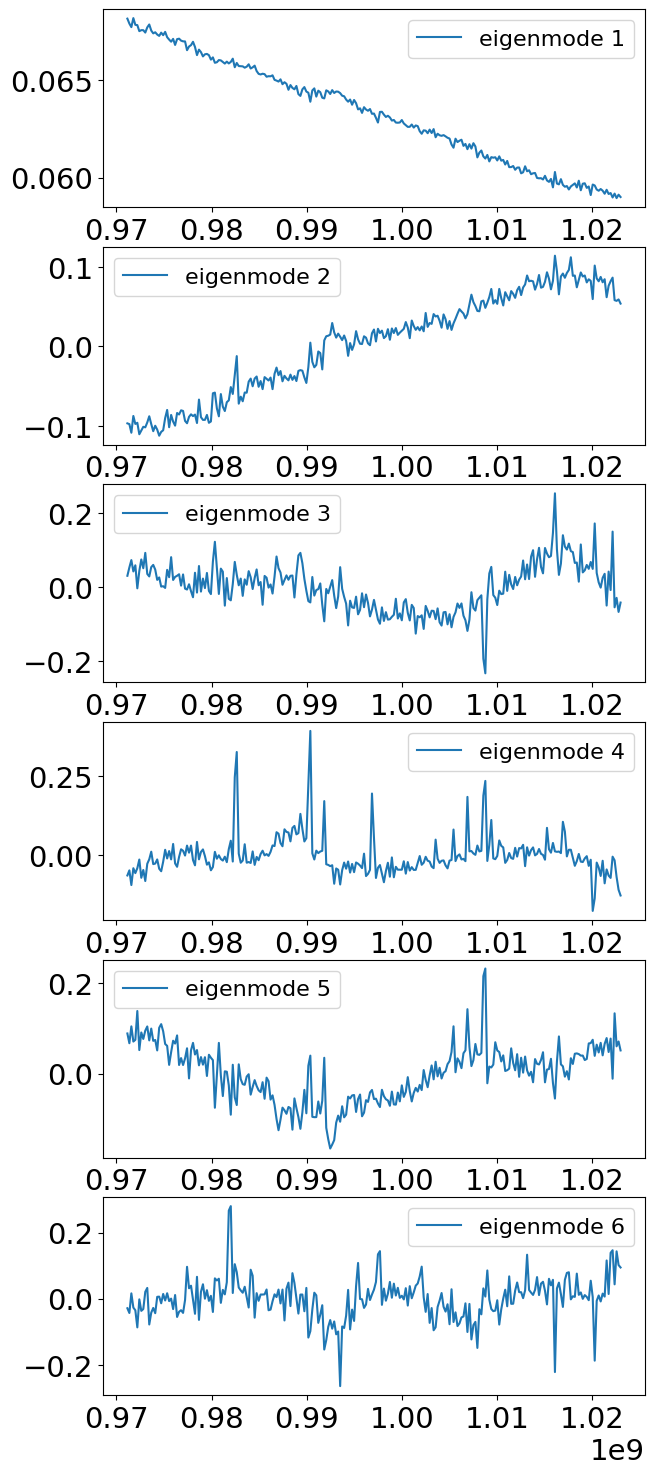

Num = 6
chart = 100*Num + 11
plt.figure(figsize=(7,3*Num))
for i in range(Num):
    plt.subplot(chart + i)
    plt.plot(ps.nu,V[:,i],label='eigenmode %s'%(i+1))
    #plt.plot(nu,V[:,i],label='eigenmode %s'%(i+1))
    plt.legend(fontsize=16)

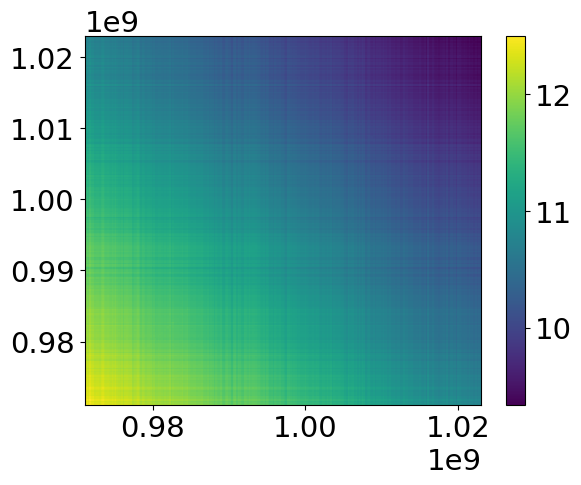

plt.figure()
plt.pcolormesh(nu_edges,nu_edges,cov_map)
plt.colorbar()

<matplotlib.colorbar.Colorbar at 0x7f25ed1570a0>

<Figure size 640x480 with 0 Axes>

ps.data = MKmap_clean
# specify some scaling factor
ps.downres_factor_transverse = 1.5
ps.downres_factor_radial = 10.0
#ps.box_buffkick = [-10,-30,-20]
ps.box_buffkick = [20,20,0]
ps.num_particle_per_pixel = 1
ps.grid_scheme = 'nnb'
ps.get_enclosing_box() # get the minimum enclosing box for the survey lightcone
ps.box_len, ps.box_resol

(array([230.91364218, 629.00778801, 283.28714617]),
 array([13.58315542, 13.38314443, 10.49211652]))

hi_map_rg,hi_weights_rg,pixel_counts_hi_rg =  ps.grid_data_to_field()

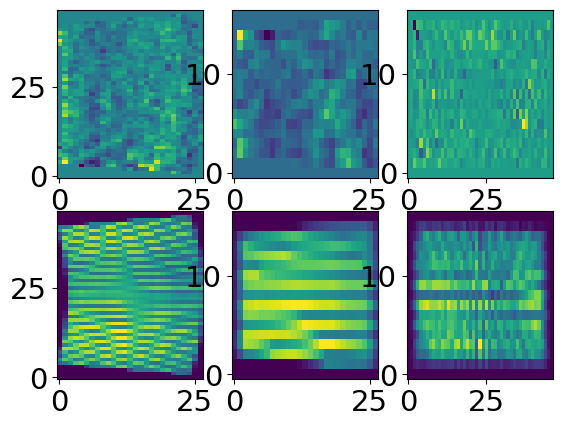

### Gridding sanity-check
fig, axes = plt.subplots(2,3)
for i in range(3):
    axes[0,i].imshow(
        hi_map_rg.mean(axis=i),interpolation='none',
        aspect='auto',
        origin='lower',
    )
    axes[1,i].imshow(
        ps.counts_in_box.mean(axis=i),interpolation='none',
        aspect='auto',
        origin='lower',
    )

gal_map_rg,gal_weights_rg,pixel_counts_gal_rg =  ps.grid_gal_to_field()

ps.field_1 = hi_map_rg.copy()
ps.weights_grid_1 = ps.counts_in_box.astype('float')
ps.weights_field_1 = None
#ps.weights_1 = (pixel_counts_hi_rg>0).astype('float')
ps.field_2 = gal_map_rg
ps.weights_field_2 = (ps.counts_in_box>0).astype('float')
ps.weights_grid_2 = np.ones_like(gal_map_rg)
ps.mean_center_1 = False # the field is already mean centered
ps.mean_center_2 = True # galaxy count is not
ps.unitless_1 = False # HI field is in temperature unit, does not need to 1/\bar{\pho}
ps.unitless_2 = True # galaxy count to overdensity needs 1/\bar{n}
ps.sampling_resol = np.array([
        ps.pix_resol_in_mpc,
        ps.pix_resol_in_mpc,
        ps.los_resol_in_mpc,
])
ps.compensate = True
ps.include_sky_sampling = [True, False]
ps.apply_taper_to_field(1, axis=[2,]) # apply taper to field 1(HI), taper in all directions
ps.apply_taper_to_field(2, axis=[2,]) # apply taper to field 1(HI), taper in all directions

nkbin = 11
# in h/Mpc
kmin,kmax = 0.07,0.3
kbins = np.linspace(kmin,kmax,nkbin+1) # k-bin edges [using linear binning]
# in Mpc-1
kbins *= ps.h
# in h/Mpc
kcuts = [0.02,0.02,0.25,0.25] #[kperpmin,kparamin,kperpmax,kparamax] (exclude areas of k-space from spherical average)
# in Mpc-1
kcuts = np.array(kcuts) * ps.h
k_sel = np.ones_like(ps.k_mode)
k_sel[0] = 0.0
k_sel[:,0,:] = 0.0
k_sel[:,:,0] = 0.0
k_sel *= (
    (np.abs(ps.k_perp<=kcuts[2]) * np.abs(ps.k_perp>kcuts[0]))[:,:,None] *
    (np.abs(ps.k_para<=kcuts[3]) * np.abs(ps.k_para>kcuts[1]))[None,None]
).astype('float')
ps.k1dbins = kbins

ps.tracer_bias_2 = 1.3
ps.tracer_bias_1 = 1.5
ps.omega_hi = 5e-4
ps.mean_amp_1 = 'average_hi_temp'

pdata_1d_cross,keff_c,nmodes_c = ps.get_1d_power(ps.cross_power_3d,k1dweights=k_sel)
pdata_1d_gg,keff_gg,nmodes_gg = ps.get_1d_power(ps.auto_power_3d_2,k1dweights=k_sel)
pdata_1d_hi,keff_hi,nmodes_hi = ps.get_1d_power(ps.auto_power_3d_1,k1dweights=k_sel)
pmod_1d_gg,keff_gg,nmodes_gg = ps.get_1d_power(ps.auto_power_tracer_2_model,k1dweights=k_sel)
# shot noise for galaxy auto-power
psn = get_shot_noise_galaxy(gal_map_rg, ps.box_len, ps.weights_grid_2 * ps.weights_field_2) * shot_noise_correction_from_gridding(ps.box_ndim,ps.grid_scheme)
psn_1d_gg,_,_ = ps.get_1d_power(psn,k1dweights=k_sel)

# a naive error bar
perror_1d_gg = (pdata_1d_gg)/np.sqrt(nmodes_gg)

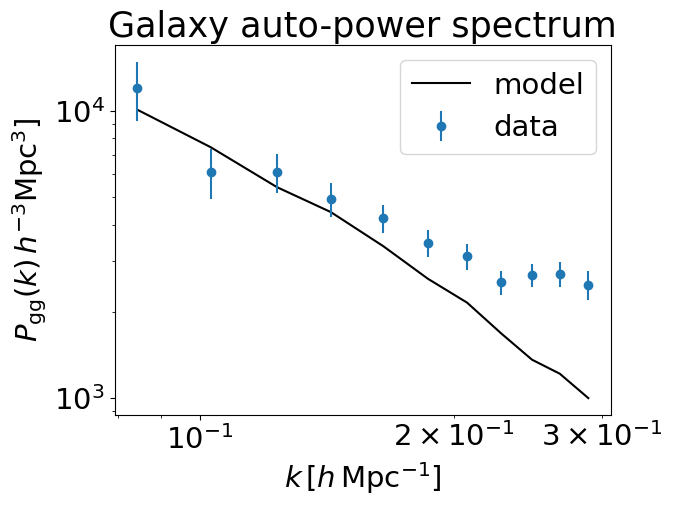

plt.plot(keff_gg/ps.h,pmod_1d_gg*ps.h**3,label='model',color='black')
plt.errorbar(keff_gg/ps.h,(pdata_1d_gg-psn_1d_gg)*ps.h**3,
             yerr=perror_1d_gg*ps.h**3,
             ls='none',
             marker='o',
             label='data')

plt.xscale('log')
plt.yscale('log')
plt.legend()
plt.xlabel(r'$k\,[h\,{\rm Mpc}^{-1}]$')
plt.ylabel(r'$P_{\rm gg}(k)\,h^{-3}{\rm Mpc}^3]$')
plt.title('Galaxy auto-power spectrum')

Text(0.5, 1.0, 'Galaxy auto-power spectrum')

# a naive error bar

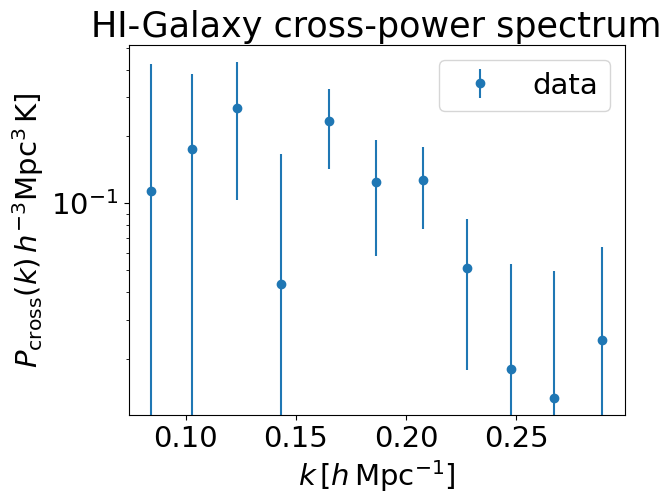

perror_1d_c = np.sqrt((pdata_1d_cross**2 + pdata_1d_hi * pdata_1d_gg)/2)/np.sqrt(nmodes_c)

#plt.plot(keff/ps.h,pmod_1d_gg*ps.h**3,label='model')
plt.errorbar(keff_c/ps.h,(pdata_1d_cross)*ps.h**3,
             yerr=perror_1d_c*ps.h**3,
             ls='none',
             marker='o',
             label='data')

#plt.xscale('log')
#plt.yscale('symlog',linthresh=1e-1)
plt.yscale('log')
plt.legend()
plt.xlabel(r'$k\,[h\,{\rm Mpc}^{-1}]$')
plt.ylabel(r'$P_{\rm cross}(k)\,h^{-3}{\rm Mpc^3\,K}]$')
plt.title('HI-Galaxy cross-power spectrum')

Text(0.5, 1.0, 'HI-Galaxy cross-power spectrum')

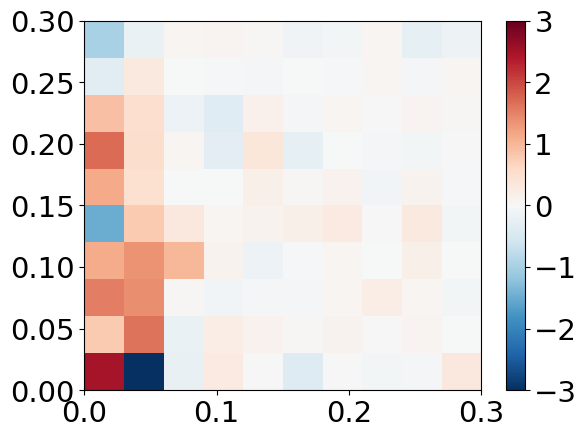

ps.kperpbins = np.linspace(0, 0.3, 11)
ps.kparabins = np.linspace(0, 0.3, 11)

pcross_cy,_ = ps.get_cy_power(ps.cross_power_3d)

plt.pcolormesh(ps.kperpbins,ps.kparabins,(pcross_cy.T),cmap='RdBu_r',vmin=-3,vmax=3)
plt.colorbar()

<matplotlib.colorbar.Colorbar at 0x7f25d28af820>

import multiprocessing as mp

mp.set_start_method("spawn", force=True)
# pass the ps specficiations as well as some simulation settings
tf = TransferFunction(
    ps, N_fg=N_fg,
    # generate mock data on a high-resolution grid, then to average it to sky map for injection
    highres_sim=2, upres_transverse=2, upres_radial=2,
    uncleaned_data=MKmap_orig, # inject into the map data to reperform PCA
    num_process=32, # number of available cpus to run parallel calculation
    pca_map_weights=ps.w_HI.astype('float'),
)
# run a null test as well, 100 realisations
null_test_arr = tf.run(range(100), type='null', return_power_3d=False)
# run tf calculation
results_arr = tf.run(range(100), type='cross', return_power_3d=False, return_power_1d=True)

# organise the results of 100 realisations
tf_1d_arr = []
pnull_1d_arr = []
pmock_1d_cross_arr = []
pmock_1d_cross_cleaned_arr = []
for i in range(len(results_arr)):
    tf_1d_arr.append(results_arr[i][0])
    pnull_1d_arr.append(null_test_arr[i][0])
    pmock_1d_cross_arr.append(results_arr[i][1])
    pmock_1d_cross_cleaned_arr.append(results_arr[i][2])

tf_1d_arr = np.array(tf_1d_arr)
pnull_1d_arr = np.array(pnull_1d_arr)
pmock_1d_cross_arr = np.array(pmock_1d_cross_arr)
pmock_1d_cross_cleaned_arr = np.array(pmock_1d_cross_cleaned_arr)

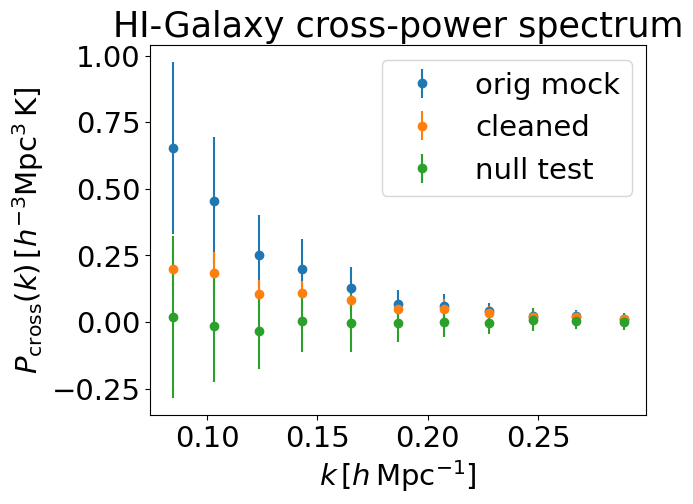

plt.errorbar(keff_c/ps.h,(pmock_1d_cross_arr).mean(0)*ps.h**3,
             yerr=pmock_1d_cross_arr.std(0)*ps.h**3,
             ls='none',
             marker='o',
             label='orig mock')
plt.errorbar(keff_c/ps.h,(pmock_1d_cross_cleaned_arr).mean(0)*ps.h**3,
             yerr=pmock_1d_cross_cleaned_arr.std(0)*ps.h**3,
             ls='none',
             marker='o',
             label='cleaned')
plt.errorbar(keff_c/ps.h,(pnull_1d_arr).mean(0)*ps.h**3,
             yerr=pnull_1d_arr.std(0)*ps.h**3,
             ls='none',
             marker='o',
             label='null test')
#plt.xscale('log')
#plt.yscale('symlog',linthresh=1e-2)
#plt.yscale('log')
plt.legend()
plt.xlabel(r'$k\,[h\,{\rm Mpc}^{-1}]$')
plt.ylabel(r'$P_{\rm cross}(k)\,[h^{-3}{\rm Mpc^3\,K}]$')
plt.title('HI-Galaxy cross-power spectrum')

Text(0.5, 1.0, 'HI-Galaxy cross-power spectrum')

tf_1d_mean = np.mean(tf_1d_arr, axis=0)
# a naive error bar
perror_1d_tf = np.sqrt((pdata_1d_cross**2/tf_1d_mean**2 + pdata_1d_hi * pdata_1d_gg/tf_1d_mean)/2)/np.sqrt(nmodes_c-1)

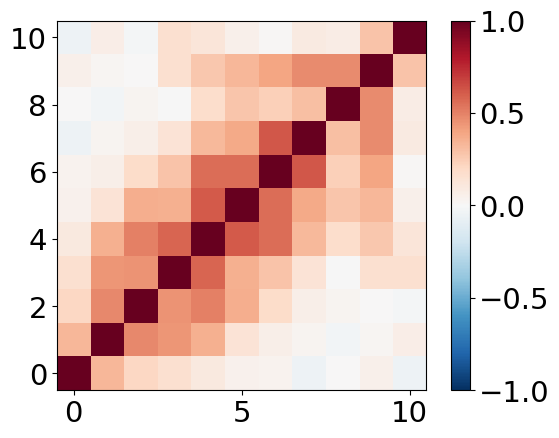

# correlation matrix
corr_mat_tf = np.corrcoef((1/tf_1d_arr).T)
cov_mat_tf = corr_mat_tf * perror_1d_tf[:,None] * perror_1d_tf[None,:]

plt.imshow(corr_mat_tf, vmin=-1, vmax=1,cmap='RdBu_r', origin='lower')
plt.colorbar()

<matplotlib.colorbar.Colorbar at 0x7f26ae1b0ee0>

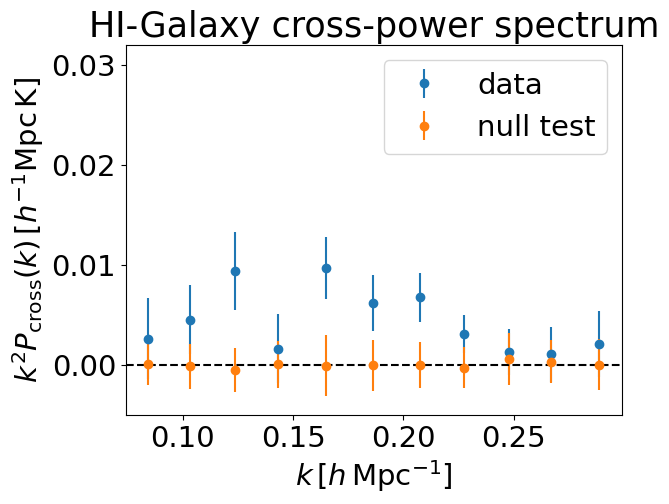

k_factor = keff_c**2 / ps.h**2
#plt.plot(keff_c/ps.h, pmod_1d_c*ps.h**3 * k_factor)
plt.errorbar(keff_c/ps.h,(pdata_1d_cross/tf_1d_mean)*ps.h**3 * k_factor,
             yerr= (perror_1d_tf)*ps.h**3 * k_factor,
             ls='none',
             marker='o',
             label='data')

plt.errorbar(keff_c/ps.h,(pnull_1d_arr).mean(0)*ps.h**3 * k_factor,
             yerr=pnull_1d_arr.std(0)*ps.h**3 * k_factor,
             ls='none',
             marker='o',
             label='null test')
plt.axhline(y=0, color='black', linestyle='--')
plt.ylim(-0.005,0.032)
#plt.yscale('log')
plt.legend()
plt.xlabel(r'$k\,[h\,{\rm Mpc}^{-1}]$')
plt.ylabel(r'$k^2 P_{\rm cross}(k)\,[h^{-1}{\rm Mpc\,K}]$')
plt.title('HI-Galaxy cross-power spectrum')

Text(0.5, 1.0, 'HI-Galaxy cross-power spectrum')

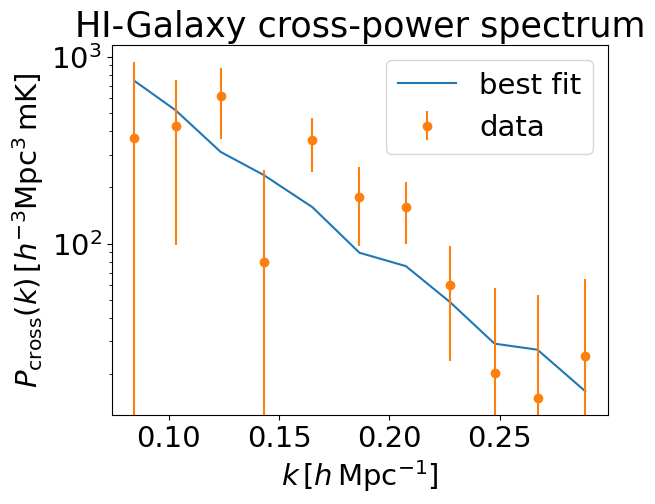

pmod_1d_c,_,_ = ps.get_1d_power(ps.cross_power_tracer_model,k1dweights=k_sel)

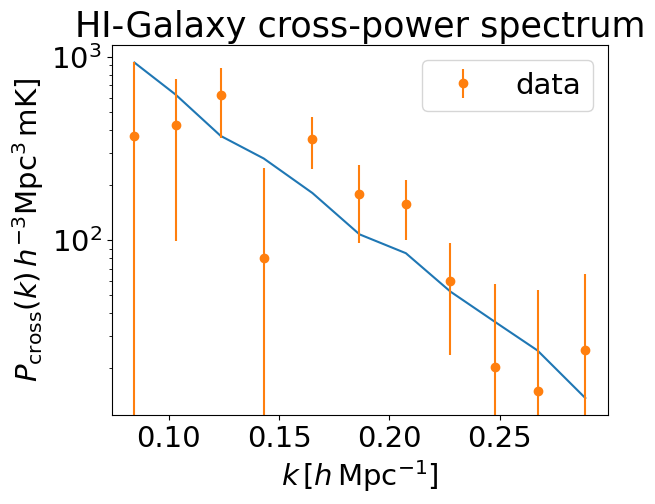

# check the power spectrum in volume unit:
k_factor = 1e3
plt.plot(keff_c/ps.h, pmod_1d_c*ps.h**3 * k_factor)
plt.errorbar(keff_c/ps.h,(pdata_1d_cross/tf_1d_mean)*ps.h**3 * k_factor,
             yerr= perror_1d_tf*ps.h**3 * k_factor,
             ls='none',
             marker='o',
             label='data')
plt.yscale('log')
#plt.ylim(1e1,5e3)
plt.legend()
plt.xlabel(r'$k\,[h\,{\rm Mpc}^{-1}]$')
plt.ylabel(r'$P_{\rm cross}(k)\,h^{-3}{\rm Mpc^3\,mK}]$')
plt.title('HI-Galaxy cross-power spectrum')

Text(0.5, 1.0, 'HI-Galaxy cross-power spectrum')

data_vector = (pdata_1d_cross/tf_1d_mean)
data_covariance = cov_mat_tf
np.sqrt(data_vector @ np.linalg.inv(data_covariance) @ data_vector)

np.float64(4.259869470035313)

data_vector = (pdata_1d_cross/tf_1d_mean)
data_covariance = cov_mat_tf

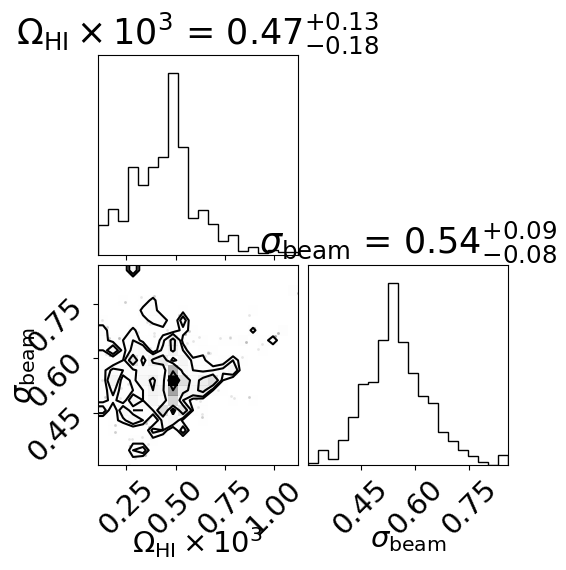

# fit two parameters, overall HI density and beam size
# init position
ps.omega_hi = 5e-4
ps.sigma_beam_ch = ps.sigma_beam_ch.mean()
# tell sampler which parameters to vary
varied_params = ['omega_hi', 'sigma_beam_ch']
# specify priors
params_priors = [
    ('uniform', 1e-4, 2e-3), # flat prior, lower, upper
    # gaussian prior, mean, sigma
    ('gaussian', ps.sigma_beam_ch.mean(), 0.1), # beam model should be close to truth since it is a measurement

]
# here we use emcee-sampler
sampler = SamplerEmcee(
    extract_model_fitting_inputs(ps),
    data_vector,
    data_covariance,
    params_name=varied_params,
    params_prior=params_priors,
    observables=['cross'], # only fit cross power
    save=True,
    save_filename='fitting2.h5',
    nwalkers=4,
    nsteps=200,
    nthreads=32,
)

init_pos = np.array([5e-4, ps.sigma_beam_ch.mean()])
start_coord = (
    1 + np.random.uniform(-1e-2, 1e-2, size=(sampler.nwalkers, sampler.ndim))
) * init_pos[None, :]

# resume = True if you are starting from a previous run
sampler.run(resume=False, progress=True, start_coord=start_coord)

00%|██████████| 200/200 [15:02<00:00,  4.51s/it]

<emcee.ensemble.EnsembleSampler at 0x7f25ec2e44c0>

# posterior
points = sampler.get_points().reshape((-1,2))
points[:,0] = points[:,0]*1e3

log_prob = sampler.get_log_prob()
best_fit = sampler.get_points().reshape((-1,2))[np.argmax(sampler.get_log_prob())]

import corner
corner.corner(
    points,
    labels=[r'$\Omega_{\rm HI}\times 10^3$', r'$\sigma_{\rm beam}$'],
    show_titles=True,
);

# a naive error bar
#k_factor = keff_c**2 / ps.h**2
k_factor = 1e3
plt.plot(keff_c/ps.h, sampler.get_model_vector(best_fit)[0]*ps.h**3 * k_factor,label='best fit',)
plt.errorbar(keff_c/ps.h,(pdata_1d_cross/tf_1d_mean)*ps.h**3 * k_factor,
             yerr= perror_1d_tf*ps.h**3 * k_factor,
             ls='none',
             marker='o',
             label='data')
plt.yscale('log')
#plt.ylim(1e1,9e3)
plt.legend()
plt.xlabel(r'$k\,[h\,{\rm Mpc}^{-1}]$')
plt.ylabel(r'$P_{\rm cross}(k)\,[h^{-3}{\rm Mpc^3\,mK}]$')
plt.title('HI-Galaxy cross-power spectrum')

Text(0.5, 1.0, 'HI-Galaxy cross-power spectrum')
